VPC

  • Virtual Private Cloud
  • Multiple VPCs in single AWS region.
  • Only private IPv4 ranges are allowed.

Default VPC​

  • All AWS accounts have a default VPC.
  • It has internet connectivity and all EC2 instances inside have public IPv4 addresses.

Subnet (IPv4)​

  • AWS reserves 5 IP addresses in each subnet.

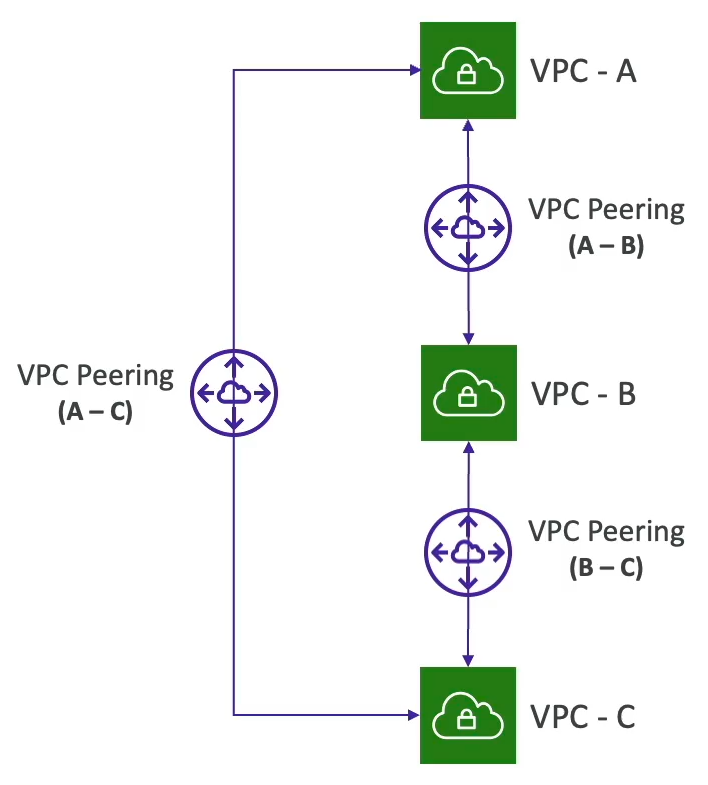

VPC Peering​

  • Privately connect two VPCs using AWS network.
  • Must not have overlapping CIDRs.
  • Must update route tables in each VPC's subnets to ensure EC2 instances can communicate with each other.

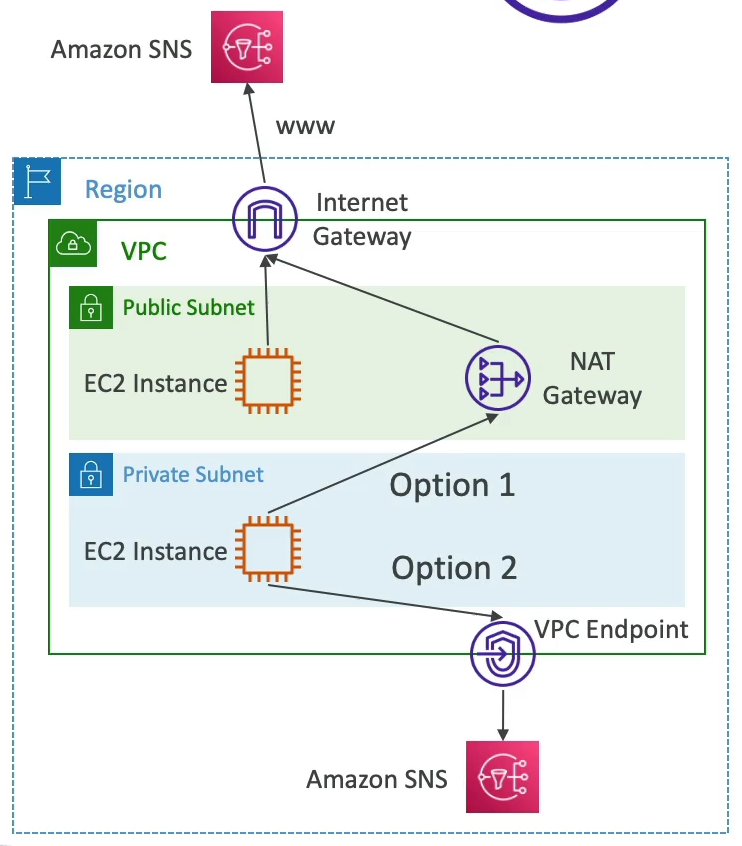

VPC Endpoints​

  • Allows to connect to AWS services using a private network instead of using the public internet.

Types of Endpoints​

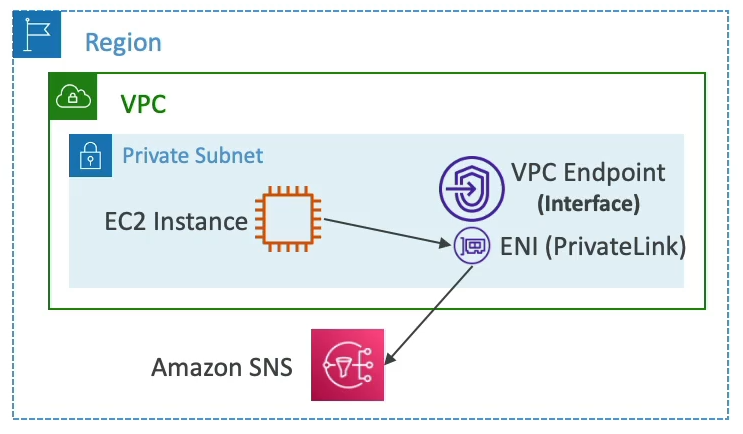

  • Interface Endpoints: Provisions ENI as an entry point.

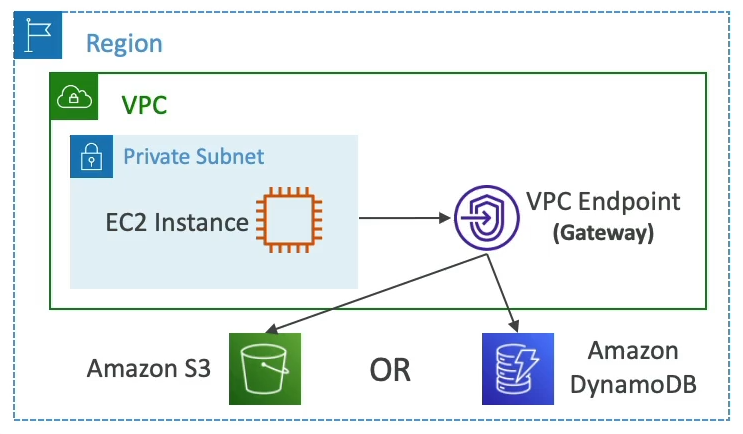

  • Gateway Endpoints: Provisions a gateway and must be used as a target in route table; only supports S3 and DynamoDB.

VPC Flow Logs​

  • Capture information about IP traffic going into interfaces.
  • Captures network information from AWS managed interfaces too.

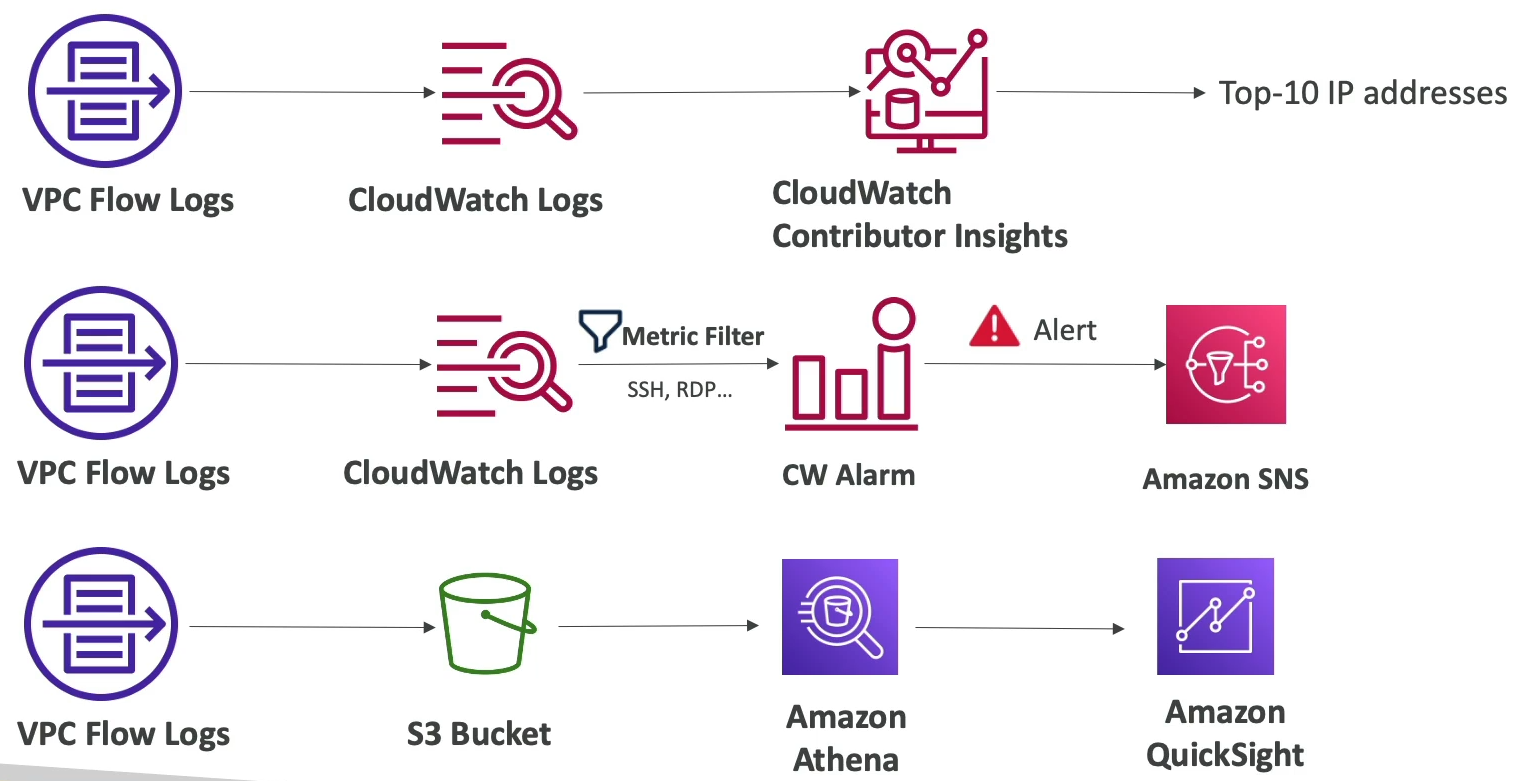

Architectures​

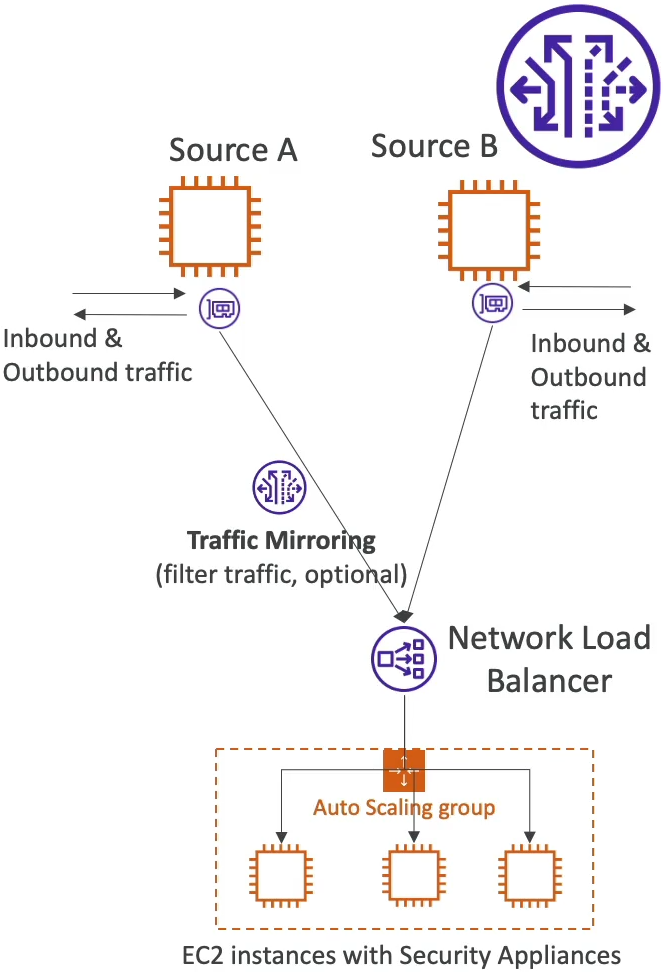

Traffic Mirroring​

  • Capture and inspect network traffic.
  • Route the traffic to security appliances that you manage.

IPv6 in VPC​

  • IPv4 cannot be disabled for VPC and subnets.
  • Can enable IPv6 to operate in dual-stack mode.
